SPECIFICATIONS
Dual Wavelength Technology
The ADVAtx uses two clinically proven wavelengths:
- 589 nm (yellow light) – Targets redness, vascular lesions, and pigmentation.
- 1319 nm – Penetrates deeper to treat acne, scars, and improve skin texture.
Advanced Pulse Delivery
- 589 nm is delivered in quasi-continuous wave pulses (~12 kHz), giving great results with minimal downtime and no bruising.
- 1319 nm is delivered in continuous wave mode for deeper tissue treatments.
Spot Sizes & Scanning Options
- Spot sizes: 1 mm, 2 mm, and 3 mm
- Scanner handpieces: Fractional delivery in 5×5 mm, 7×7 mm, or 10×10 mm grids
- Flexible delivery: Single-spot or fractionated for precise or full-face treatments
Energy Range
- Fluence: 5 to 60 J/cm²
Adjustable for a wide range of skin concerns and types
Device Size & Weight
- Dimensions: Approx. 50″ H × 23″ W × 23″ D (127 × 58.5 × 58.5 cm)
- Weight: Between 63–85 kg (140–187 lbs), depending on configuration
Power Requirements
- Input Voltage: 100–240 V AC – works with standard clinic power setups
Manufacturer Notes:
The ADVALight ADVATx is designed to be safe and effective for a wide range of skin types, including darker skin tones (Fitzpatrick types I-V). While it can be used on virtually all skin types, some darker skin tones may require specific precautions, such as using hydroquinone creams before treatment.
Certifications
FDA-cleared & CE-marked
Approved for 25+ indications, including:
- Rosacea
- Facial veins
- Melasma
- Acne & acne scars
- Pigmentation
- Fine lines & wrinkles
- Skin rejuvenation
Unique Dual‑Wavelength System
ADVATx is the world’s only solid‑state laser device combining 589 nm and 1319 nm wavelengths in a single handpiece. This dual‑wavelength capability enables both vascular / pigment‑based treatments and deeper tissue therapy.
Broad Regulatory Clearances
The device holds both FDA 510(k) and CE certification, covering over 25 treatment indications including rosacea, melasma, acne, vascular lesions, wrinkles, scars, warts, and more.
Consumable-Free Design
No consumables are required for operation — no tips, no cartridges, no dyes. That means reduced ongoing costs and lower maintenance burden.
Minimized Discomfort, Reduced Downtime
The yellow 589 nm wavelength is delivered via quasi‑continuous wave pulsing (~12 kHz), which smooths out energy delivery, reducing risk of purpura, bruising or overt vascular damage.
The 1319 nm wavelength delivers continuous wave heating for deeper tissue effects (fibroblast stimulation, sebum regulation) with controlled thermal impact.
Flexible Delivery Modes
The handpiece supports both single‑spot delivery and fractionated scanning (5×5 mm, 7×7 mm, 10×10 mm), allowing providers to adapt treatment with different spot sizes, scan patterns, and energies.

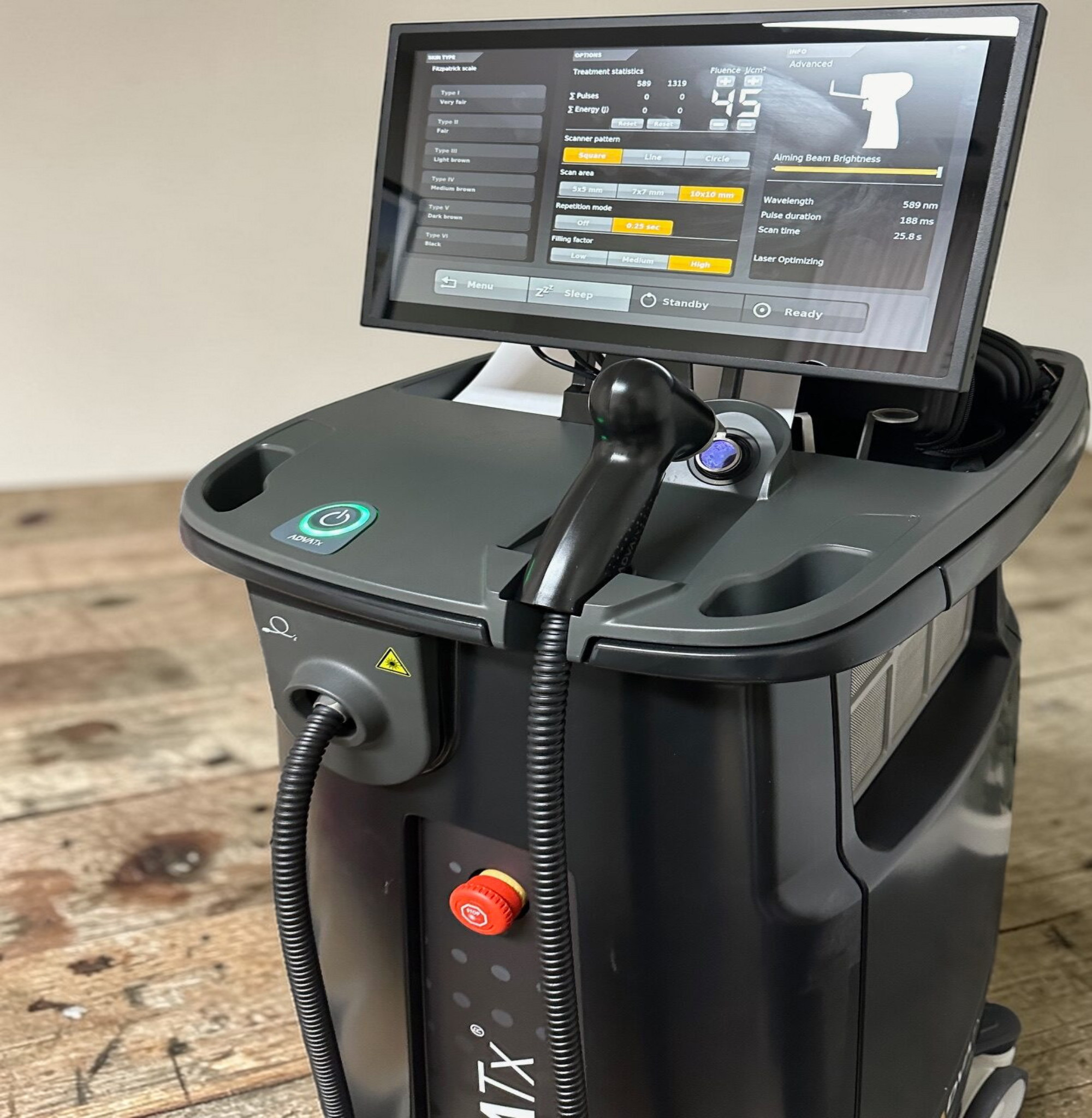

User-Friendly Interface
Designed for ease of use: intuitive controls, simple operation, visual scan patterns, etc., to reduce practitioner learning curve.
Proven Safety Record
According to manufacturer data, over 2,000 patients have been treated with no adverse events reported in clinical use under the described settings.
