Optos Daytona Model p200 sale includes

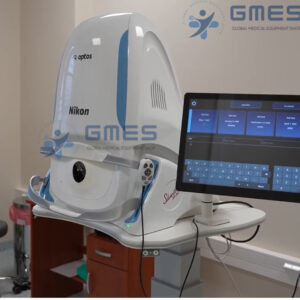

- Optos Daytona Model p200T
- Motorised table
- Computer
- Screen and tablet. It has been recently serviced and is full working condition
Only Optos Daytona ultra-widefield technology can capture a 200° view (or 82%) of the retina in a single, high resolution optomap image in less than ½ second. Daytona offers autofluorescence imaging with green laser light and 3-in-1 Color Depth imaging. Unlike white light, low powered laser wavelengths scan simultaneously allowing review of the retinal substructures in their individual laser separations:
- Color
- Sensory (red-free)
- Choroidal
Images are displayed in a consistent geometry which accurately represents anatomical features across the retina. Automatic image registration enables pixel to pixel comparisons of images across modalities and from visit to visit
Features:
- Non-mydriatic, non-contact imaging through 2 mm pupils and many cataracts.
- High image resolution shows fine detail across the retina (optic disc, macula and periphery).
- Autofluorescence imaging with green laser light displays lipofuscin in the RpE.
- Eyesteering further extends the field of view past the vortex vessels, in some cases.
- Stereo disc imaging.
- 3D Wrap for patient education
- DiCOM compatible
- Innovative software tools enhance image evaluation.
- Images are available immediately and stored electronically for future comparison or for use in telehealth applications
Technical Specifications:
- Trade Name: Daytona
- Model Name: P200T
- Model Number: A10600
- Imaging Modalites:
- Color
- Sensory (red-free)
- Choroidal
- Autofluorescence af
- Resolution:
- Optomap: 20 µm
- Optomap plus: 14 µm
- Wavelengths:
- Red laser: 635 nm
- Green laser: 532 nm
- Exposure Time: Less than 0.4 seconds
- Footprint:
- Width: 440 mm/18 in
- Depth: 500 mm/20 in
- Height: 795 mm/32 in
- Weight: 28 kg/62 lbs
- Table Space Requirements (not including wheel position):
- Width: 887 mm/35 in
- Depth: 600 mm/24 in
- Color: Variety of colors
- Laser Class: Laser safety class-1 following EN60825-1 and 21 CFR1040.10 and 1040.11
- System Voltage:
- US: 100-120V at 50/60Hz, 3A
- EU/AU: 200-240V at 50/60Hz, 1.5A
- Power Compsumption: 300VA
- Communication Protocol: DICOM Compatible
