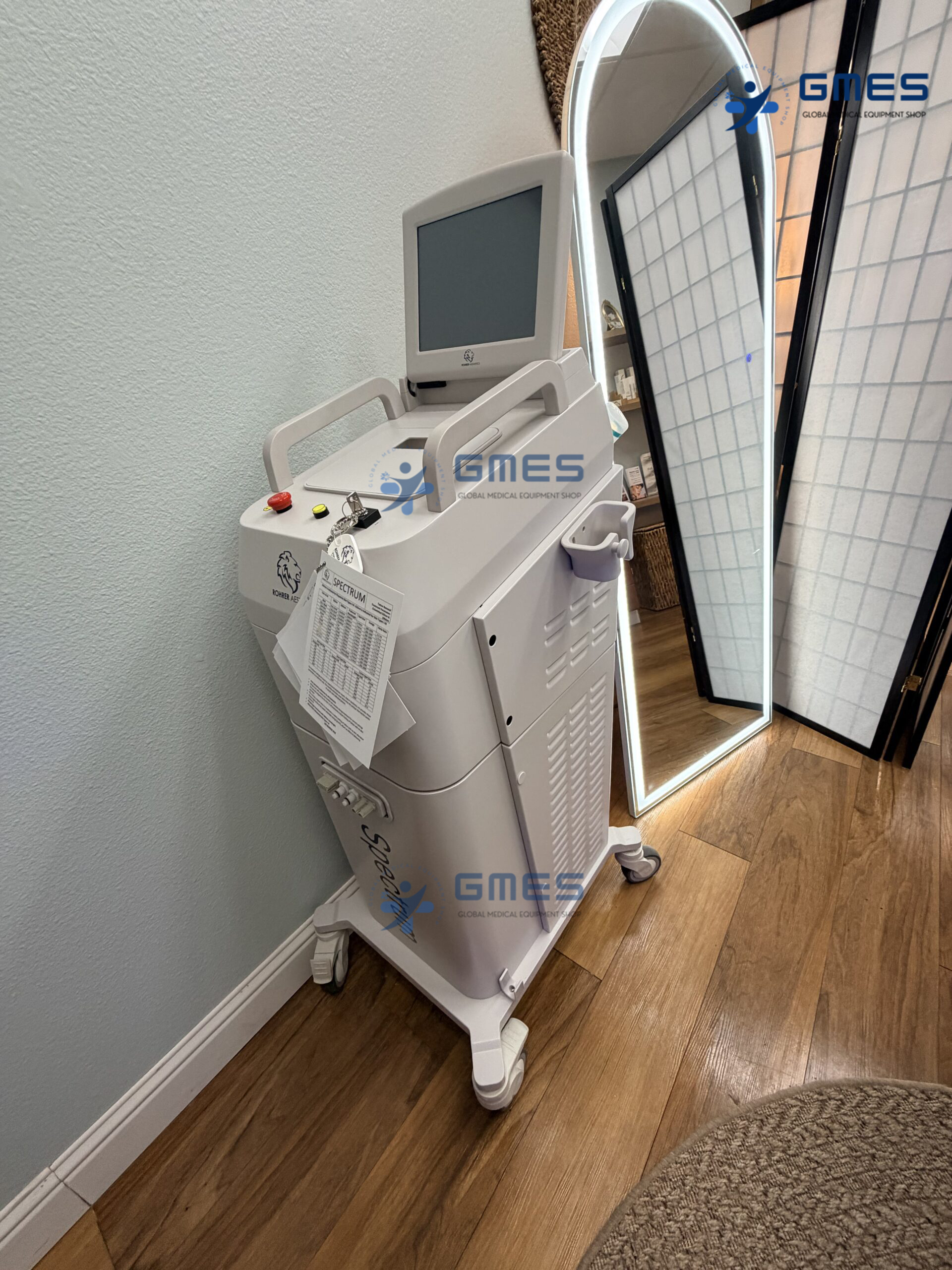

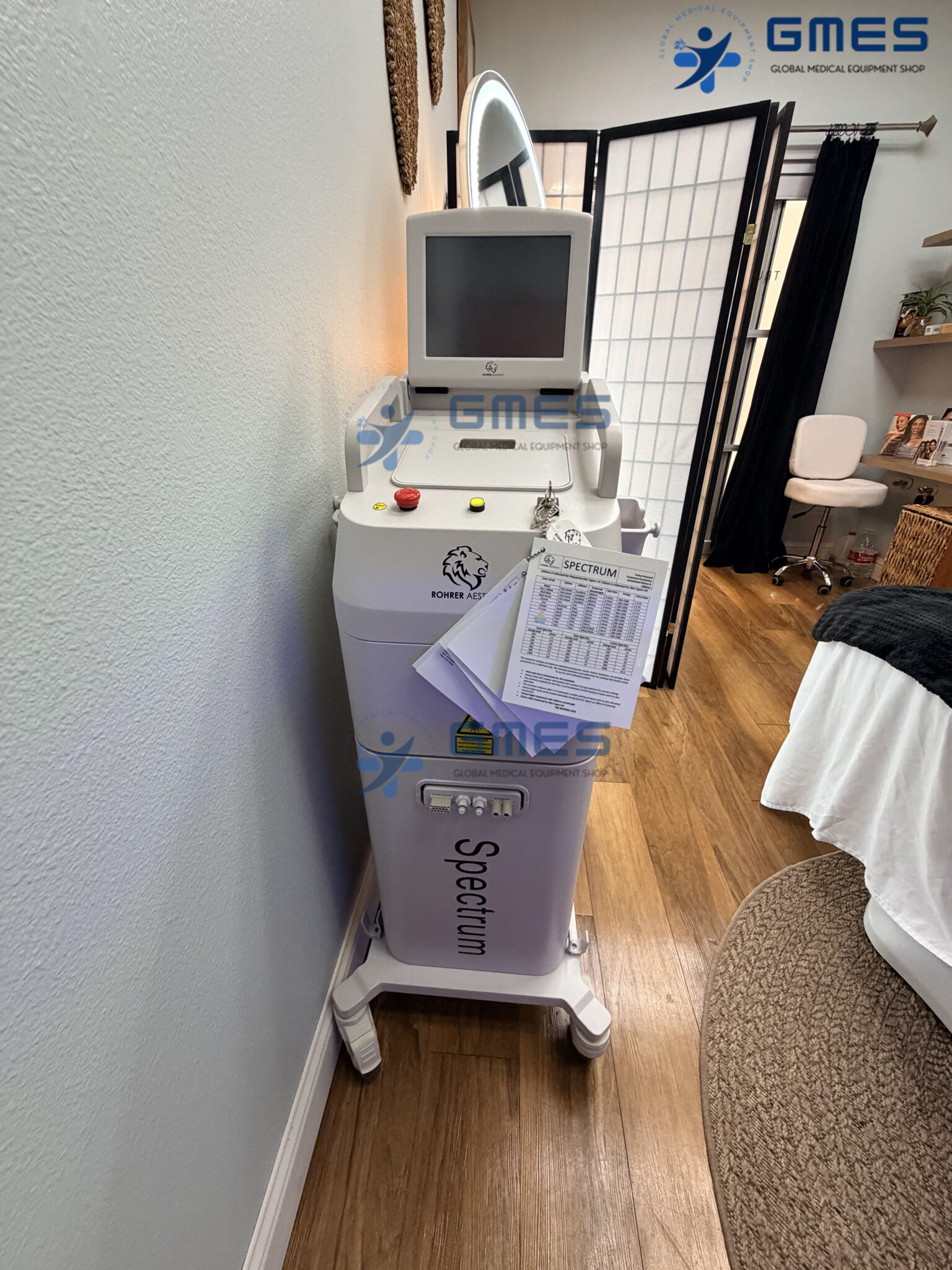

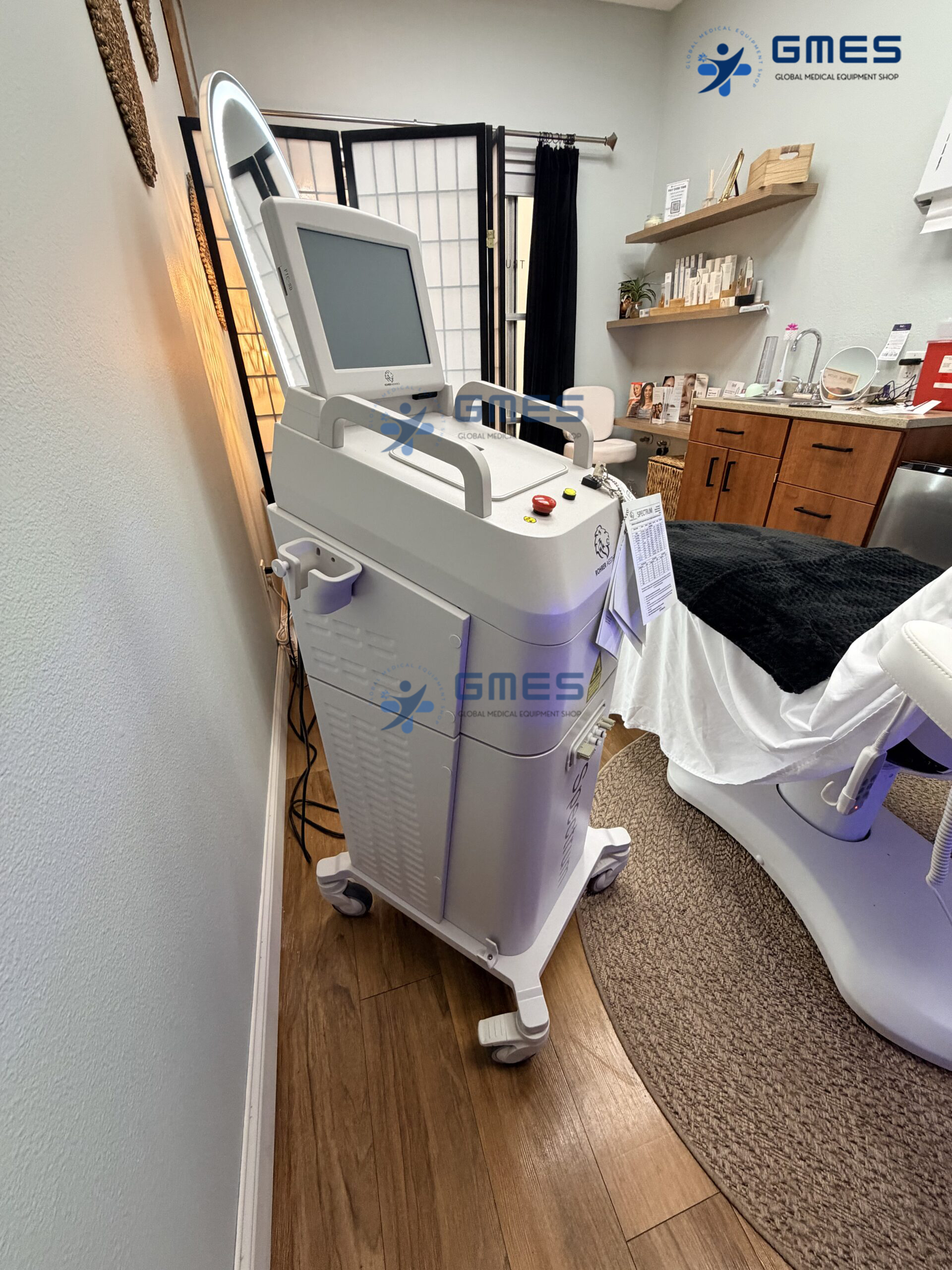

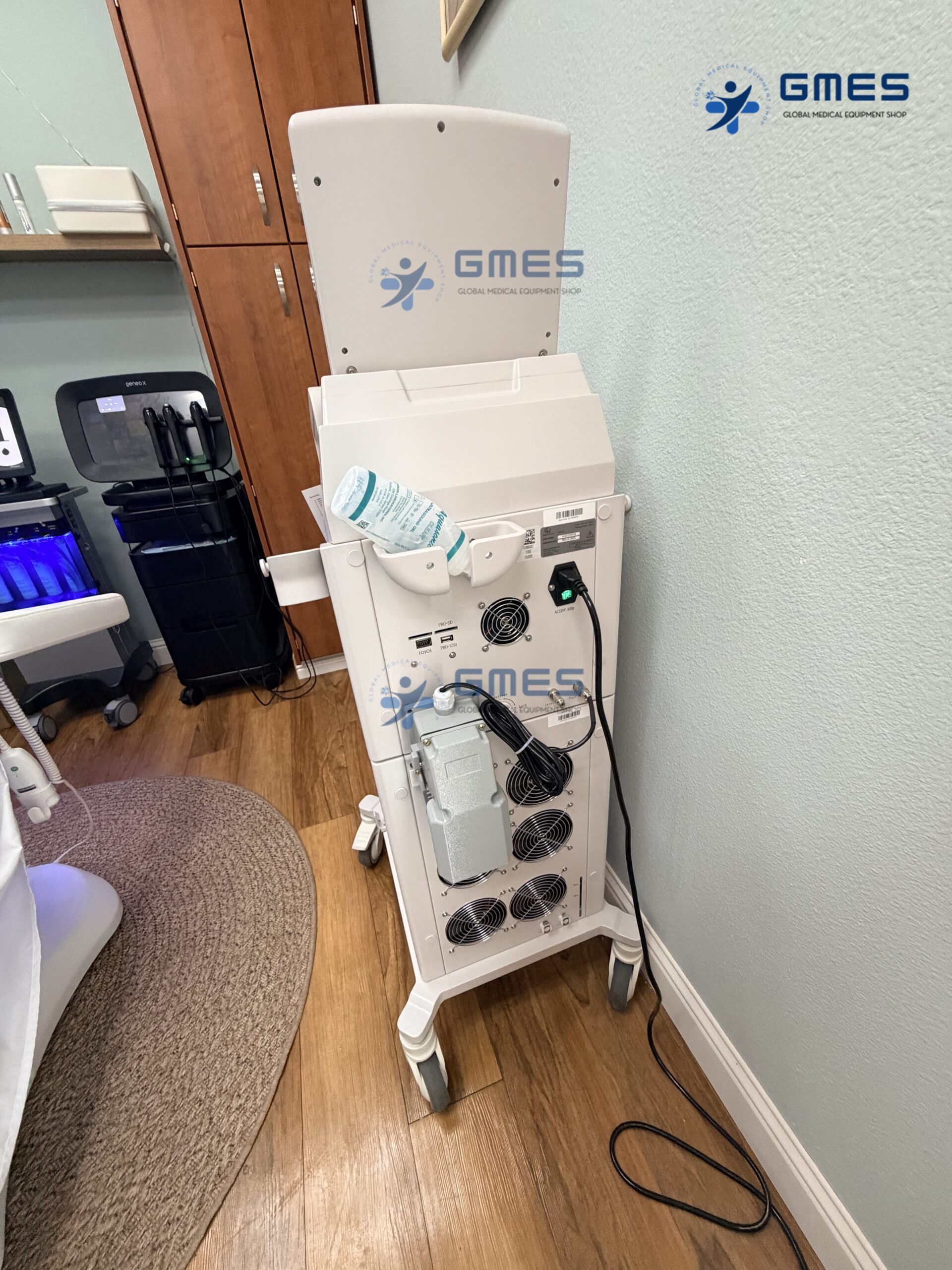

2025 Rohrer Aesthetics Spectrum Multi-Platform System

Rohrer Spectrum Platform Overview – General System Information

The information below reflects general manufacturer specifications for (Manufacturer Model) platforms. Included handpieces and configuration may vary with each specific unit.

Rohrer Spectrum RECERTIFICATION & CONSUMABLES

Consumables:
No disposables
No cartridges
No per-treatment fees

Recertification:
Required by the manufacturer, however we do not recommend this.  We work with independent technicians who can provide service.

Rohrer Spectrum SYSTEM SPECIFICATIONS

Multi-modality laser & IPL platform
Modular, portable design
Designed for multi-location or shared use
Self-contained cooling systems per handpiece

Rohrer Spectrum HANDPIECE SPECIFICATIONS

Erbium YAG Handpiece (2940 nm)

Wavelength: 2940 nm
Energy: Up to 1000 mJ (1 Joule)
Maximum Power: 2.4 Watts
Pulse Width: 300 microseconds
Beam Divergence: Collimated
Spot Size: 1.5 – 6 mm (with zoom lens)

Long Pulse Nd:YAG Handpiece

Wavelength: 1064 nm
Energy: Up to 18 Joules
Pulse Width: 3 – 10 ms
Spot Sizes: 1.5 mm & 3 mm

Q-Switched Nd:YAG / KTP Handpiece

Wavelengths: 1064 nm & 532 nm (KTP crystal converter)
Energy: Up to 1000 mJ
Maximum Fluence: 12 J/cm²
Spot Sizes: 1.5 mm, 3 mm, 4 mm (with zoom lens)
Pulse Width: 10 nanoseconds
Repetition Rate: 1 – 5 Hz

810 Diode Handpiece

Wavelength: 810 nm
Spot Size: 12 × 10 mm
Pulse Width: Adjustable up to 400 ms
Pulse Rate: 0.5 – 10 Hz
Energy Density: 2 – 120 J/cm²

IPL Handpiece

Wavelength Range: 450–1200 nm
Fluence: 5–40 J/cm²
Spot Size: 35 × 15 mm
Repetition Rate: 1 pulse every 3 seconds
Cooling: Self-contained closed-loop cooling (0–5°C)

IPL Filters & Indicated Uses:
650 nm (HR): Hair Removal
540 nm (SR): Skin Rejuvenation
510 nm (VR): Vascular & Pigmented Lesions, Melanin, Seborrheic Keratosis, Photodamaged Skin
450 nm (AR): Acne & Atrophic Acne Scars

Rohrer Spectrum MANUFACTURER NOTES

Why the Spectrum?

The Rohrer Spectrum is ideal for practices looking to maximize treatment options while minimizing overhead. With multiple laser and IPL modalities in one system, no consumables, and a portable design, the Spectrum offers flexibility, reliability, and long-term value.

HANDPIECES & INDICATED USES

Erbium YAG | Skin Resurfacing

Used for resurfacing treatments of the face, neck, chest, and hands to reduce pigmentation, fine lines, wrinkles, and mild scarring with minimal downtime.

Long Pulse Nd:YAG | Vascular Treatments

Used for vascular lesion reduction, including:
Spider veins
Cherry angiomas
Other vascular lesions

Q-Switched Nd:YAG / KTP | Tattoo Removal

Dual wavelengths (1064 nm and 532 nm) allow effective treatment of a wide range of tattoo pigments and ink colors.

810 Diode | Hair Removal

Designed for efficient laser hair removal with a large spot size, high repetition rates, and built-in contact cooling for patient comfort.

Intense Pulsed Light (IPL)

Four interchangeable filters allow treatment of:
Hair reduction
Acne
Vascular lesions
Pigmented lesions
Skin rejuvenation
